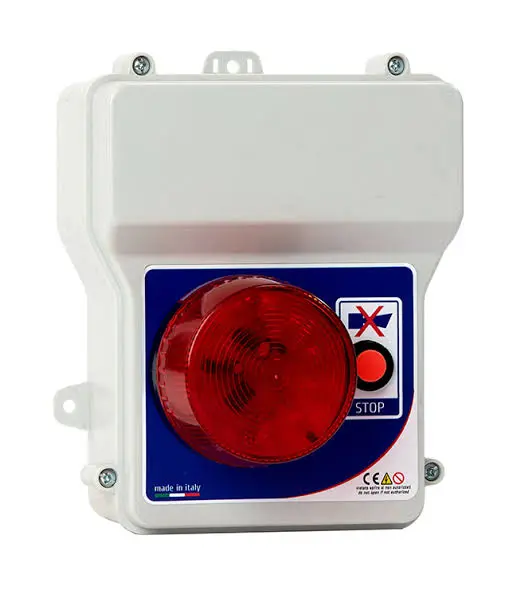

C.PANEL ALARM TOP ALARM VAB SIREN/VISUAL

Visual and acoustic alarm indicator with siren shut-off button and buffer battery

GENERAL SPECIFICATIONS

• Operating voltage 230Vac
• Deactivable supply mains absence alarm signaling
• Siren shut-off button
• Alarm activation delay trimmer OFF/1÷18min
• Visual Led indicator
• Acoustic indicator
• Buffer battery 12Vdc 1,3Ah with charger (SS101.01)
• Connection terminal board
• External thermoplastic box
• Cable glands
• Protection degree IP55
• Operating temperature -5/+40°C

INPUTS/OUTPUTS

• Very low voltage input for external command
• Alarm output max 5A NC-COM-NO (pure contact)
