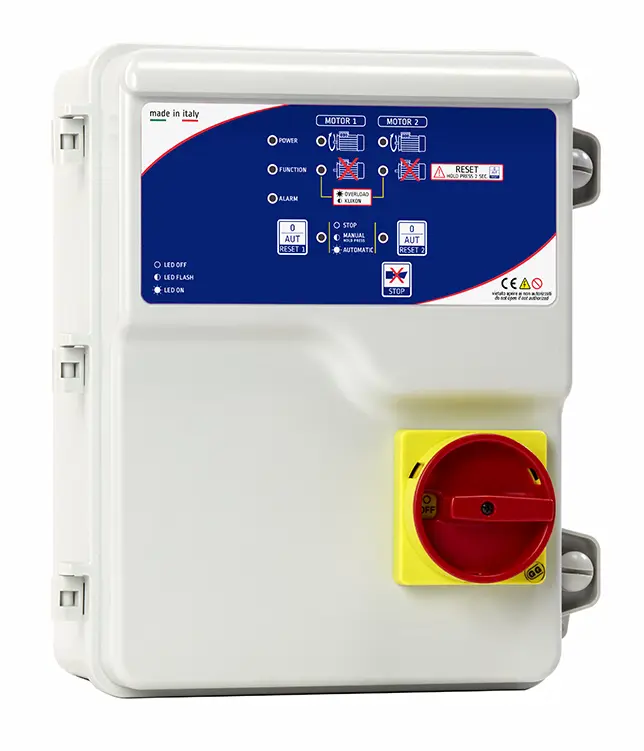

C.PANEL 2P MULTI 2 400V 0.5-10HP 0.5-16A

Direct starting electronic control panel 2 motors for pressure booster, clean water and sewage

GENERAL SPECIFICATIONS

• Operating voltage 230Vac +15/-20% 50/60Hz (SA674.xx)
• Operating voltage 400Vac +15/-20% 50/60Hz (SA677.xx)
• General disconnecting switch with door lock
• N°2 buttons for automatic -0- manual operation
• Siren shut-off button
• Maximum current trimmer for each motor
• Probe sensitivity trimmer 1÷100kohm
• “POWER” Led light (supply mains)
• N°2 running Led lights
• N°2 motors’ overload Led lights
• N°2 motors’ klixon intervention Led lights
• N°2 motors’ status Led lights
• “FUNCTION” Led light (inputs status)
• “ALARM” Led light (level status)
• Auxiliary circuit protection fuse
• Motors’ protection fuse
• N°2 contactors (SA677.xx)
• External thermoplastic box
• Cable glands
• Protection degree IP65
• Operating temperature -5/+50°C
• Relative humidity 60% at 50°C (not condensed)

INPUTS/OUTPUTS

• N°4 very low voltage inputs
• N°2 very low voltage inputs for motor klixon
• N°2 alarm outputs 12Vdc max 200mA for siren and flashing Led lamp
• Alarm output max 5A NC-COM-NO (pure contact)

PROTECTIONS

• Maximum current protection for each motor with alarm
• Lack and sequence of phases protection with automatic reset and alarm
• Deactivable minimum and maximum voltage protection with automatic reset and alarm
• Klixon protection for each motor with automatic reset and alarm
