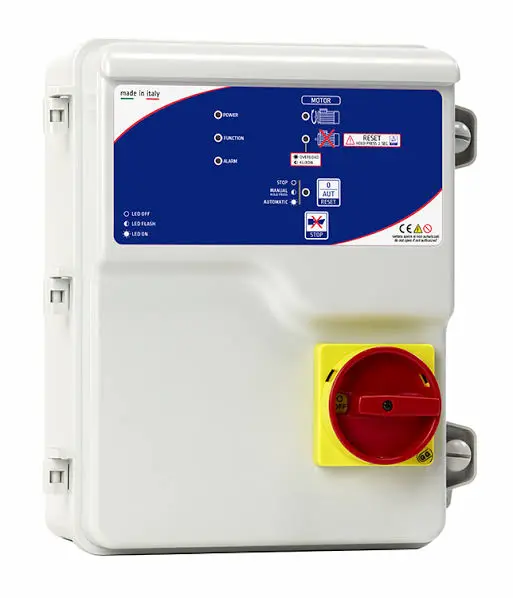

C.PANEL 1P MULTI 1 230V 0.5-3HP 2-18A

Direct starting electronic control panel 1 motor for clean water and sewage

GENERAL SPECIFICATIONS

• Operating voltage 230Vac +15/-20% 50/60Hz (SA664.xx)
• Operating voltage 400Vac +15/-20% 50/60Hz (SA667.xx)
• General disconnecting switch with door lock
• Button for automatic -0- manual operation
• Siren shut-off button
• Maximum current trimmer
• Timed probe trimmer 1÷240min
• Probe sensitivity trimmer 1÷100kohm
• “POWER” Led light (supply  mains)
• Running Led light
• Motor overload Led light
• Motor klixon intervention Led light
• Motor status Led light
• “FUNCTION” Led light (inputs status)
• “ALARM” Led light (level status)
• Auxiliary circuit protection fuse
• Motor protection fuse
• Contactor (SA667.xx)
• External thermoplastic box
• Cable glands
• Protection degree IP65
• Operating temperature -5/+50°C
• Relative humidity 60% at 50°C (not condensed)

INPUTS/OUTPUTS

• N°4 very low voltage inputs
• Very low voltage input for motor klixon
• N°2 alarm outputs 12Vdc max 200mA for siren and flashing Led lamp
• Alarm output max 5A NC-COM-NO (pure contact)

PROTECTIONS

• Maximum current protection with alarm
• Lack and sequence of phases protection with automatic reset and alarm
• Deactivable minimum and maximum voltage protection with automatic reset and alarm
• Motor klixon protection with automatic reset and alarm
