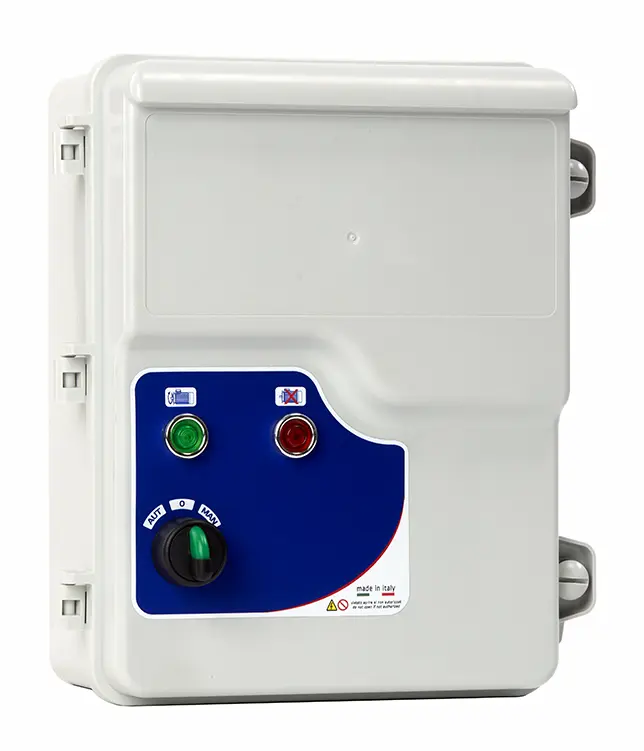

CONTROL BOX DIRECT 1 230V 2HP 9-14A

Direct starting electromechanical control panel 1 motor

GENERAL SPECIFICATIONS

• Operating voltage 230Vac ±10% 50/60Hz (SA624.xx)
• Operating voltage 400Vac ±10% 50/60Hz (SA634.xx)
• Selector switch for automatic -0- manual operation (stable)
• Running light
• Overload light
• Motor protection fuse
• Contactor
• Thermal relay (internal reset)
• Connection terminal board
• External thermoplastic box
• Cable glands
• Protection degree IP55
• Operating temperature -5/+40°C

PROTECTIONS

• Maximum current protection with alarm

INPUTS/OUTPUTS

• Input for pressure switch or float switch
