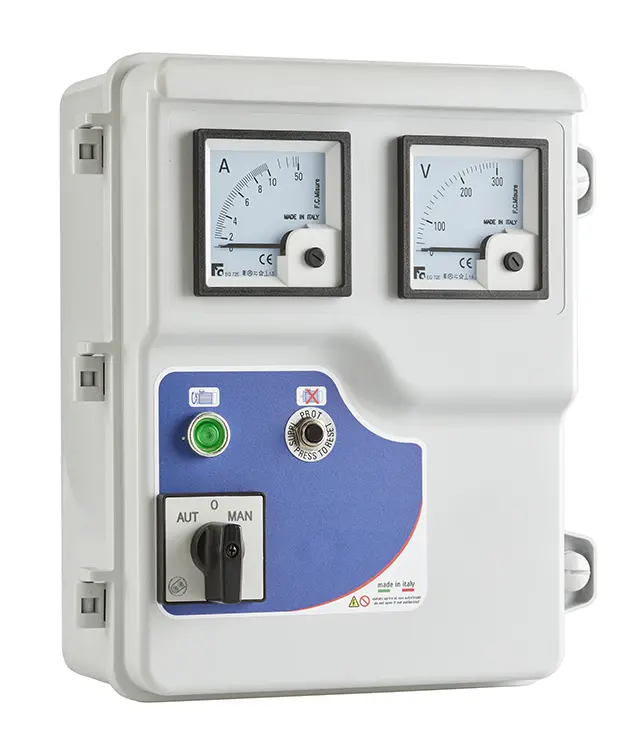

CONTROL BOX BASIC 230 2HP 13A 60UF DIALS

Direct starting electromechanical control panel 1 motor with capacitor, voltmeter, ammeter and cam commutator

GENERAL SPECIFICATIONS

• Operating voltage 230Vac ±10% 50/60Hz
• Commutator for the automatic -0- manual operation
• Running light
• Analog ammeter 72×72
• Analog voltmeter 72×72
• Running capacitor
• Thermal circuit breaker (external reset)
• Connection terminal board
• External thermoplastic box
• Cable glands
• Protection degree IP55
• Operating temperature -5/+40°C

PROTECTIONS

• Maximum current protection

INPUTS/OUTPUTS

• Input for pressure switch or float switch
