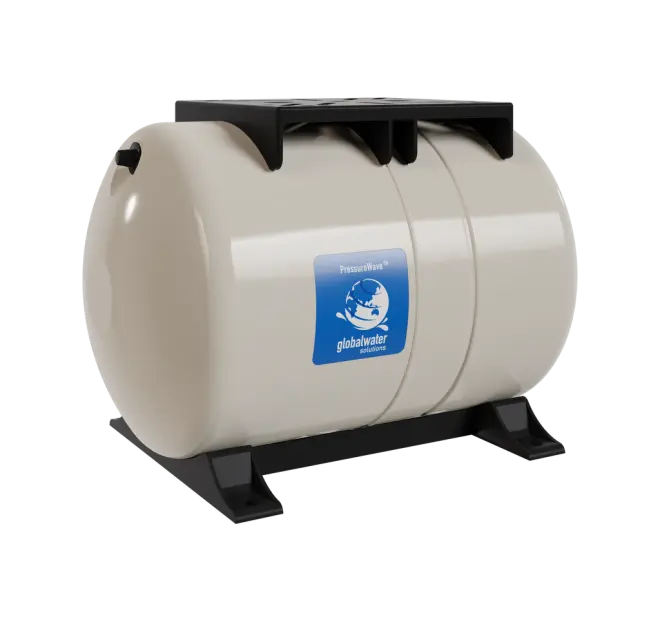

TANK PRESSURE HORIZ PRESSUREWAVE 20LT
The PressureWave™ 20-liter / 5.28-gallon horizontal pressure tank is engineered for reliable performance in a compact form. Its virgin polypropylene liner and high-grade butyl diaphragm provide a reinforced structure for extended service life. The tank’s patented stainless-steel water connection ensures a dual water/air seal for leak prevention, while the O-ring sealed brass air valve offers additional reliability.
With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this horizontal tank is versatile and ideal for small booster systems, hydraulic hammer arresting, and thermal expansion. Its durable carbon steel shell and polyurethane-coated finish ensure resistance to corrosion and external damage.
- Booster systems
- Thermal expansion
- Irrigation systems
- Hydraulic hammer arresting
Temp Max: 90°C / 194°F
Pressure Pre-charge: 1.9 bar / 28 psi
Nominal Volume: 20 Liter / 5.28 Gallon
Connection: 1" BSPT (M)
Color: Almond
Pressure Max: 10 bar / 150 psi
Diameter: 26.4 cm / 10.4 in
Documents
Internal Reference:
PWB-20LH
