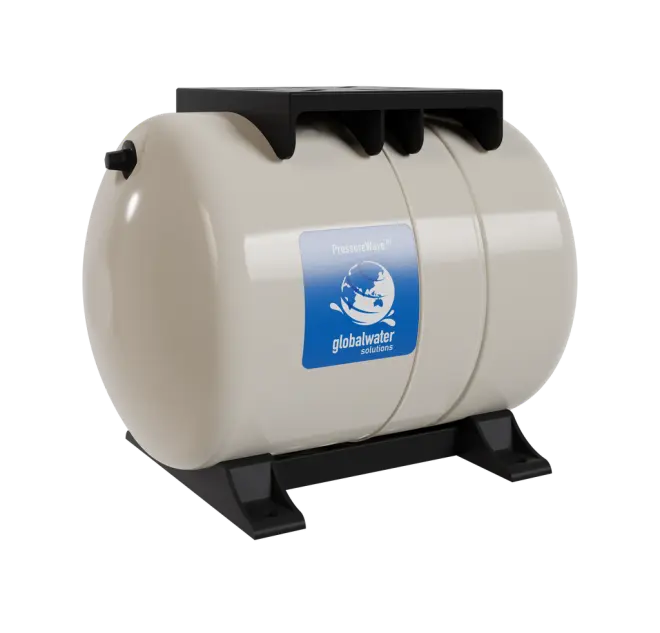

TANK PRESSURE HORIZ PRESSUREWAVE 12LT
The PressureWave™ 12-liter / 3.17-gallon horizontal pressure tank offers compact and reliable performance for smaller pressure systems. Its virgin polypropylene liner and high-grade butyl diaphragm are reinforced to ensure a longer service life. The patented stainless-steel water connection provides a dual water/air seal for leak-free and maintenance-free operation.
With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this tank is suitable for booster systems, thermal expansion, or hydraulic hammer arresting. Its carbon steel shell with dual-layer polyurethane paint provides excellent resistance to corrosion and wear.
- Booster systems
- Thermal expansion
- Irrigation systems
- Hydraulic hammer arresting
Temp Max: 90°C / 194°F
Pressure Pre-charge: 1.9 bar / 28 psi
Nominal Volume: 12 Liter / 3.17 Gallon
Connection: 1" BSPT (M)
Color: Almond
Pressure Max: 10 bar / 150 psi
Diameter: 23 cm / 9.1 in
Documents
Internal Reference:
PWB-12LH
