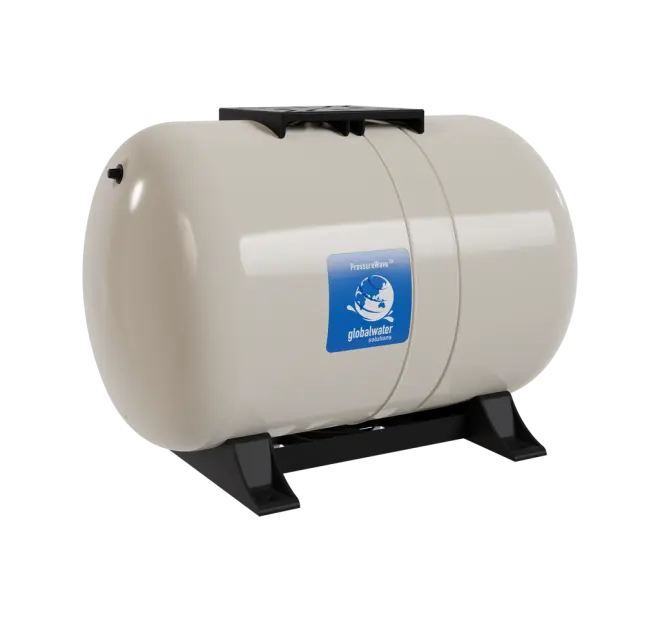

TANK PRESSURE HORIZ PRESSUREWAVE 100LT
The PressureWave™ 100-liter / 26.42-gallon horizontal pressure tank is engineered for durability and performance. Constructed with a virgin polypropylene liner and a high-grade butyl diaphragm, it is reinforced at wear points for extended life. The patented stainless-steel water connection ensures a dual water/air seal, preventing leaks and reducing maintenance. The brass air valve with an O-ring sealed cap enhances reliability. This tank is finished with a dual-layer polyurethane paint for long-lasting protection against corrosion.
With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this tank suits various applications including booster systems, irrigation, and thermal expansion. Its horizontal orientation allows for flexible installation, while the robust carbon steel shell guarantees strength under pressure.
- Booster systems
- Thermal expansion
- Irrigation systems
- Hydraulic hammer arresting
Temp Max: 90°C / 194°F
Pressure Pre-charge: 1.9 bar / 28 psi
Nominal Volume: 100 Liter / 26.42 Gallon
Connection: 1" BSPT (M)
Color: Almond
Pressure Max: 10 bar / 150 psi
Diameter: 43 cm / 16.9 in
Documents
Internal Reference:
PWB-100LH
