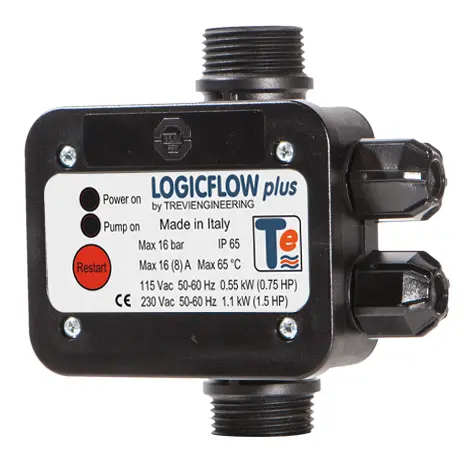

SWITCH FLOW LOGICFLOW PLUS - TIMER
Equipped with automatic restart and anti-jamming functions. The device automatically starts the pump for about 7 seconds every 30 minutes for 6 hours.
The first start takes place 30 minutes after the last pump stop.
The device also automatically starts the pump for about 7 seconds every 24 hours (antijamming function).
The pump is started 24 hours after the last pump stop.
This model is ideal for the direct provisioning from the water mains in the event of frequent interruptions in the water supply service.
minimum starting flow: 1 litre/min
working pressure: 16 bar
maximum motor power: 1.1kW (1.5HP)
maximum current: 8A
maximum operating temperature: 60°C
Internal Reference:
FS300
