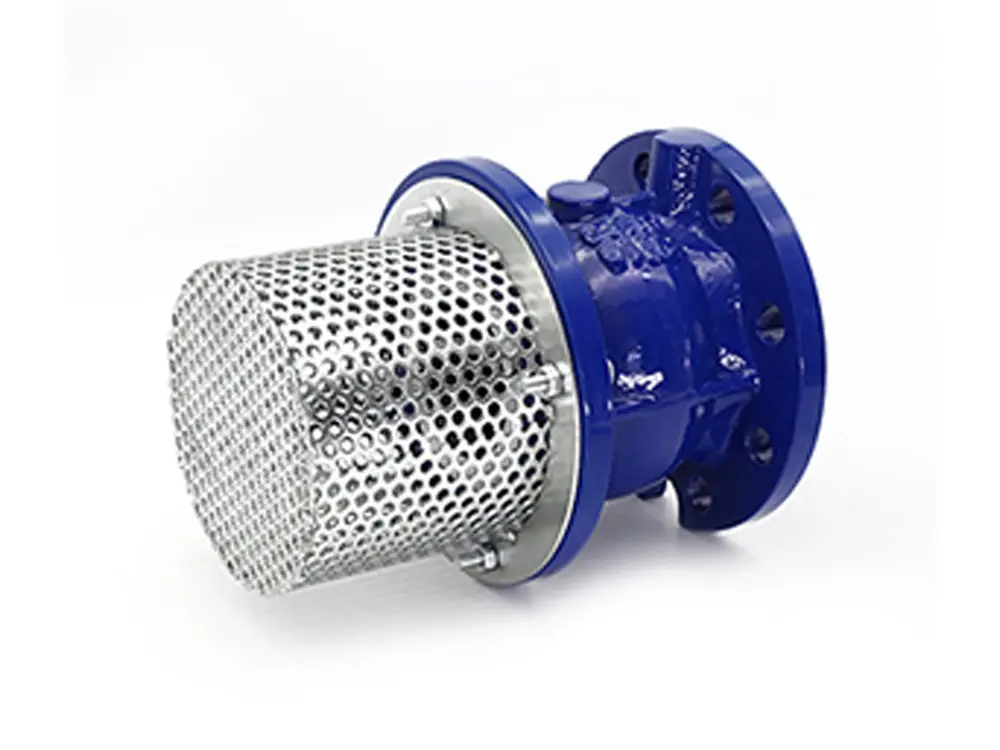

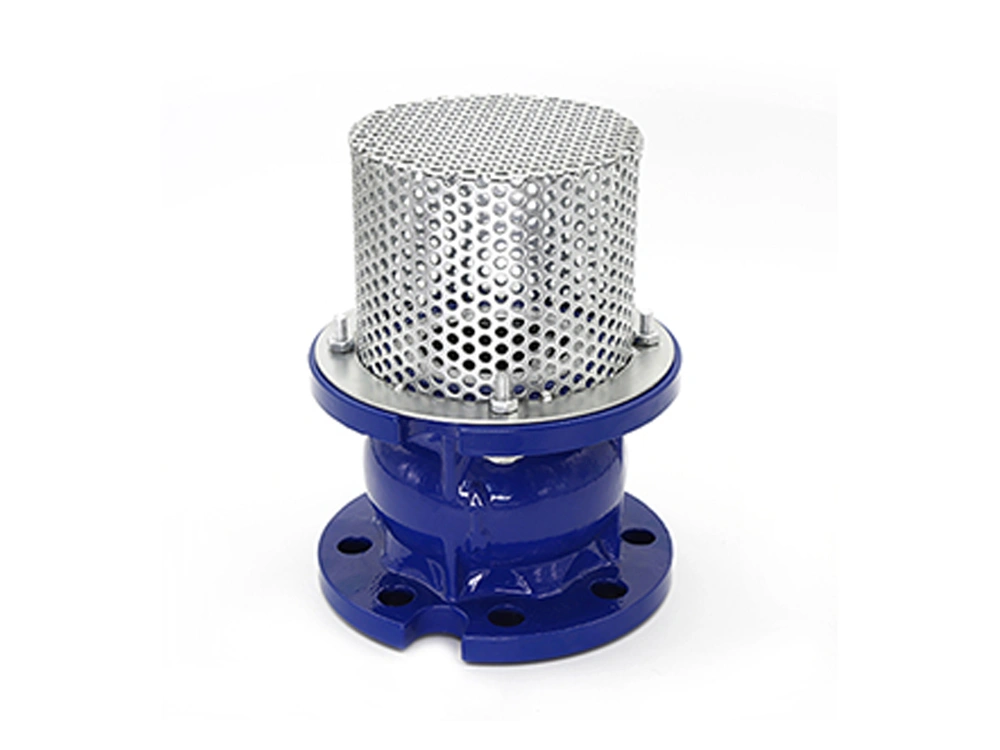

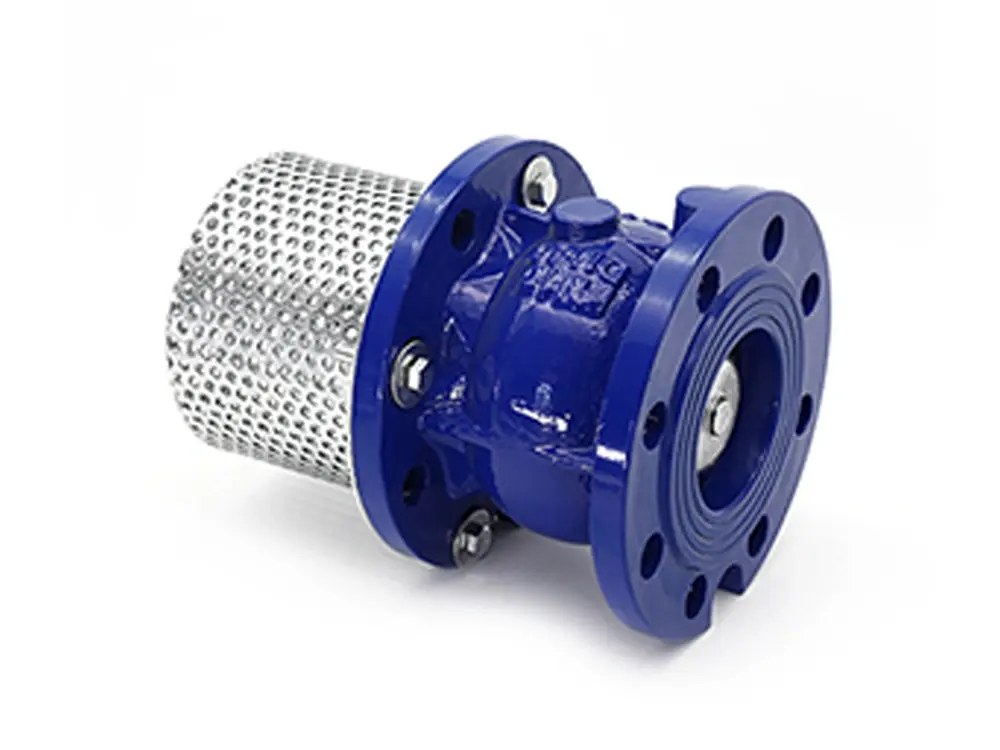

FOOTVALVE FLANGED CAST IRON DN100

1.Flange according to EN1092-2 PN10/16

2.Excellent tightness

3.Low head loss

4.Extremely reliable

5.Excellent hydraulic result

6.Simplicity in mounting and use

7.Working pressure: 1.0Mpa/1.6Mpa

8.Pressure test according to standards: API598 DIN3230 EN12266-1

9.working temperature:

NBR: 0℃～+80℃

EPDM: -10℃～+120℃

10.Medium: Fresh Water, Sea water, all kinds of oil, acid, alkaline liquid etc.
